| Place of Origin: | China(Mainland) |
| Brand Name: | HUIJIA |
| Certification: | ISO/ROHS/SGS |
| Model Number: | N type |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PP Bag |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000/PCS |
| Gender: | Female | Material: | Plating |
|---|---|---|---|
| Characteristic Impedance: | 50ohm | Frequency Range: | DC-11GHz |
| VSWR: | <=1.15 | Dielectic Withstanding Voltage: | >= 2500RMS |
| High Light: | DC 11GHz coaxial cable adapter,LDF6-50 Coaxial Cable Adapter,11GHz coaxial cable female connector |
||

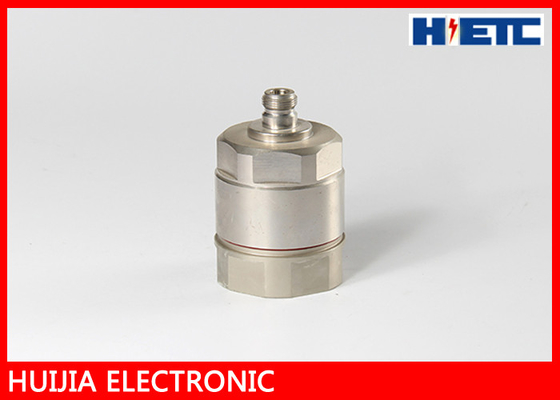

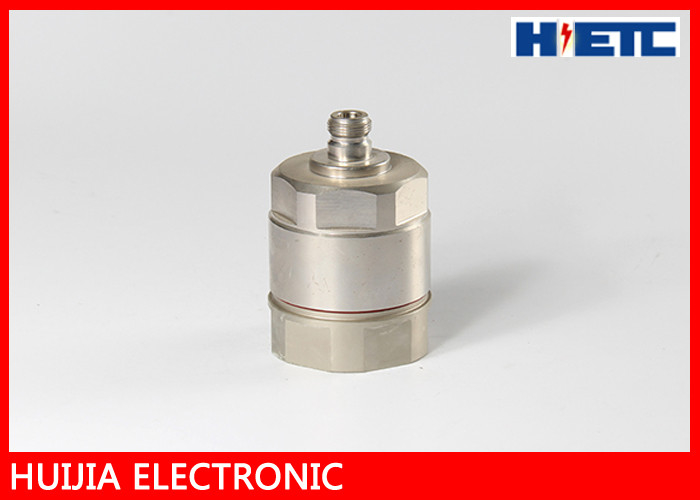

RF N STRAIGHT Female Antenna Connector For 1-1/4 Inch Feeder Coaxial Cable Elecrtronic Part LDF6-50
Characteristic impedance: 50ohm
Frequency range: DC-11GHz
VSWR:<=1.15
Dielectic Withstanding Voltage:>= 2500RMS
Dielectic Resitance >=5000MΩ
Contact Resistance Center Contact <=1.5mΩ
Outer Contact <=1.0mΩ
Material:
Center contacts:Male---brass,gold plated;Female---phosphor ,gold plated
Bodies other metal parts:brass,nickel or silver plated.
Insulators:TFE
Crimp ferrule:copper,nickel plated
Heat-shirnk tubing:thermofit plastic
