| Place of Origin: | China |
| Brand Name: | HUIJIA |
| Certification: | CE/ROHS/ISO/SGS |
| Model Number: | HJ-NF158 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PP bag inner, Brown Carton |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 1000/PCS |
| Product Name: | Cable Connector | Style: | N-TYPE Female |
|---|---|---|---|
| Frequency Range: | 0-11GHz | Impedance: | 50 Ohm |
| Working Voltage: | 1000V Max | Withstand Voltage: | 1500V Rms |
| Lead Free Status: | Lead Free | Cable Group: | 1-5/8” Cable |
| High Light: | N Type Coaxial Cable Adapter,1000V Coaxial Cable Adapter,1-5/8" Cable Coax To Antenna Adapter |
||

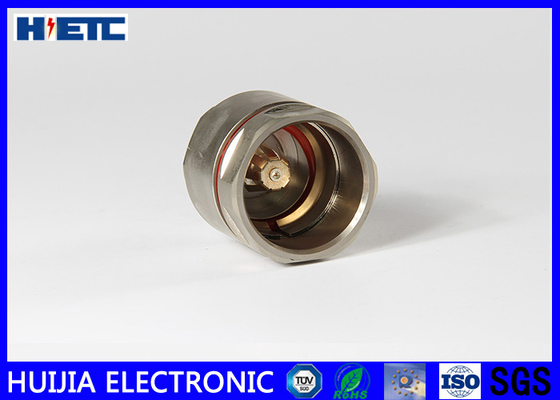

N Type Female Antenna Connector Adapter For 1-5/8” Coaxial Cable Group 0 - 11GHz Frequency Range
Specifications:
| Technical Parameter for Connector | Style | N-TYPE Female |
| Connector Type | Female Pins | |
| Fastening Type | Threaded | |
| Frequency Range | 0-11GHz | |
| Impedance | 50 Ohm | |
| Working Voltage | 1000V max | |
| Withstand Voltage | 1500V rms | |
| Available Size | 1-5/8”” Coaxial Cable |
Description:
N connector: suitable for the frequency range of 0~11GHz, for small and medium power with the coaxial cable connector, which is the most widely used in indoor distribution of a connector, Have good mechanical properties, can be used with most of the feeder
