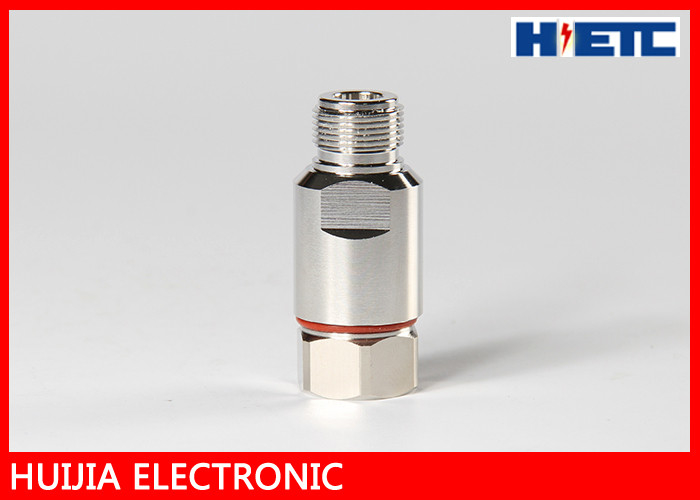

Straight 1/2" Super Flex Coaxial Cable Adapter For TV

Straight 1/2" Super Flex Coaxial Cable Adapter For TV

  • Straight 1/2" Super Flex Coaxial Cable Adapter For TV
Straight 1/2" Super Flex Coaxial Cable Adapter For TV
Product Details:
Place of Origin: China(Mainland)
Brand Name: HUIJIA
Certification: ISO/ROHS/SGS
Model Number: N type
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PP Bag
Delivery Time: 10 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000/PCS
Contact Now
Detailed Product Description
Gender: Female Material: Plating
Characteristic Impedance: 50ohm Frequency Range: DC-3GHz
VSWR: <=1.15 Dielectic Withstanding Voltage: >= 2500RMS
High Light:

3GHz coaxial cable adapter for tv

,

Straight coaxial cable adapter for tv

,

1/2" coax cord adapter

1/2" Super Flex Corrugated Feeder Cable Adapter RF N Straight Female Connector





Characteristic impedance: 50ohm
Frequency range: DC-3GHz
VSWR:<=1.15
Dielectic Withstanding Voltage:>= 2500RMS
Dielectic Resitance >=5000MΩ
Contact Resistance Center Contact <=1.0mΩ
Outer Contact <=0.25mΩ



Material:



Center contacts:Male---brass,gold plated;Female---phosphor ,gold plated

Bodies other metal parts:brass,nickel or silver plated.

Insulators:TFE

Crimp ferrule:copper,nickel plated

Heat-shirnk tubing:thermofit plastic
