| Place of Origin: | China(Mainland) |
| Brand Name: | HUIJIA |
| Certification: | ISO/ROHS/SGS |
| Model Number: | DIN type |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PP Bag |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000/PCS |
| Gender: | Male | Ferquency Range: | 0-6GHz |
|---|---|---|---|
| Insulation Resistance: | >=10000m | Characteristic Impendance: | 50 Or 75 |
| Insulation Voltage Withstanding: | 2700v | Center Conductor: | <=1.0 |
| High Light: | SGS Coaxial Cable Adapter,2700v coaxial cable fittings,1/2" Coaxial Cable Adapter |
||

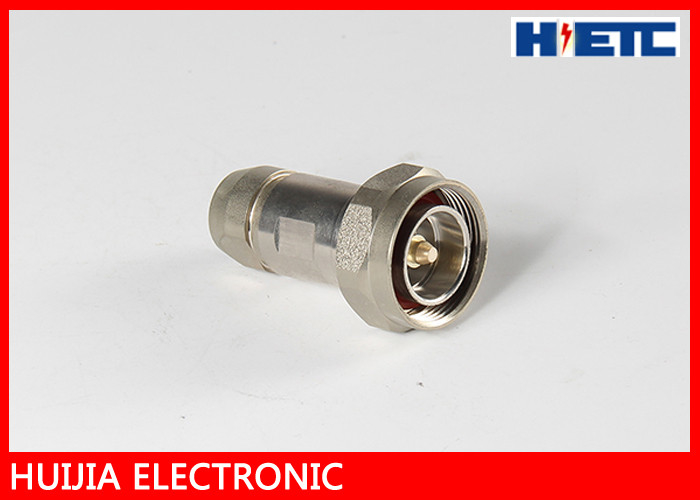

Communication 1/2 Feeder Cable RF Connector DIN Connector Male ST Clamp Electornic Part
Ferquency range:0-6GHz.Insulation resistance>=10000m
Insulation voltage withstanding:2700v
Characteristic impendance:50 or 75
Contact resistance:Center conductor<=1.0;outer conductor<=0.5
Connector durability:500 cycles
Applicable standard:IEC169-4
Material:
Center contacts:Male---brass,gold plated;Female---phosphor ,gold plated
Bodies other metal parts:brass,nickel or silver plated.
Insulators:TFE
Crimp ferrule:copper,nickel plated
Heat-shirnk tubing:thermofit plastic
