IP68 Outdoor Fiber Optic Splice Box 150mmx70mmx42mm

IP68 Outdoor Fiber Optic Splice Box 150mmx70mmx42mm

  • IP68 Outdoor Fiber Optic Splice Box 150mmx70mmx42mm
IP68 Outdoor Fiber Optic Splice Box 150mmx70mmx42mm
Product Details:
Place of Origin: China(Mainland)
Brand Name: HUIJIA
Certification: ISO,SGS,ROHS
Model Number: HJ1212
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PP Bag,Brown Carton
Delivery Time: 10 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000/PCS
Contact Now
Detailed Product Description
Material: Plastic Waterproof Level: IP68
Fireproof Level: HB Lifespan: More Than 10 Years
Rainstorm Resistance: 100E150mm/h Application: BTS Installation
Inlet: 1/2" Jumper Cable(13-17mm) Oulet: Antenna Bolt
High Light:

IP68 outdoor fiber optic splice box

,

ROHS outdoor fiber optic splice box

,

IP68 joint closure fiber optic

Coxial Cable Closure For BTS Equipment 1/2 In Jumper Cable To Feeder Cable HJ1212



Technical Parameter for Closure Product Size 150mm*70mm*42mm
Model Number HJ1212
Material Plastic, silica gel
Waterproof Rating IP68
Fireproof Rating HB
Lifespan More than 10 years
Temperature Range -40~65 Celsius degree
Rainstorm resistance 100E150mm/h
Ice-snow resistance Up to 100mm
Inlet 1/2” Jumper(13-17mm)
Outlet Antenna Bolt



Description:

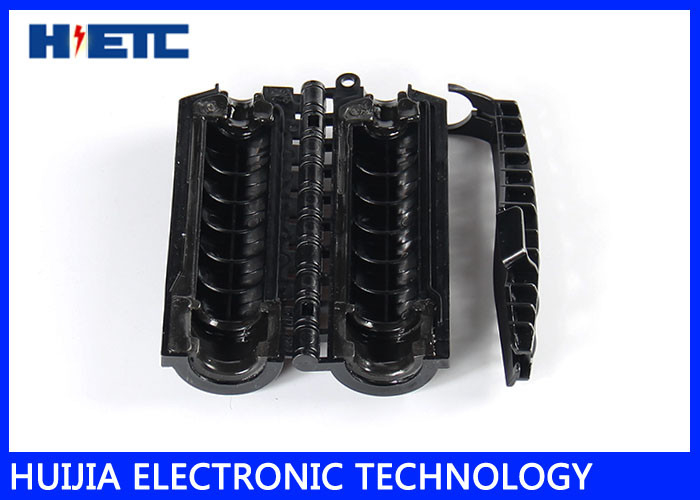

HJ1212 gel seal closure is a new kind of weatherproofing kit.It is designed to quickly seal the antenna connector and feeder connectors in cellular sites.This closure contains an innovative gel material and provides an efficient block against moisture & salt mist.

HJ1212 gel seal closures have pass strict tests from lab and achieve good feedback from long-term practical application.The ease of installation and reusable feature makes them a cost-effective solution.

Advantages



· quick install, just take seconds.

· easy removable & reusable.

· one step install, simple, don't need training.

· assure a unifom and good sealing jobs.

· wraparound and no disconnection of the connectors.

Certificate

· The third party test report from CTTL (china telecommunication technology labs )

· Material safety ROHS report.

Engineering experience

· China Unicom

· China Mobile

· China Telecom

Installation:

          1. Open closure,place the connector inside.

          2. Close the closure

          3. Slash the pin

          4. The hole of pin should cover the eminent point of the closure

          5. Press the button,and push the pin

          6. Open the closure
