| Place of Origin: | China(Mainland) |
| Brand Name: | HUIJIA |
| Certification: | ISO,SGS.ROHS |
| Model Number: | HJ12158 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PP Bag,Brown Carton |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000/PCS |
| Material: | PP | Waterproof Level: | IP68 |
|---|---|---|---|
| Fireproof Level: | HB | Lifespan: | More Than 10 Years |
| Rainstorm Resistance: | 100E150mm/h | Application: | BTS Installation |
| Inlet: | 1/2" Jumper Cable (13-17mm) | Oulet: | 1-5/8" Feeder Cable (49.5-52mm) |
| High Light: | HB fiber optic splice box outdoor,IP68 fiber optic splice box outdoor,100E150mm/h fiber optic closure |
||

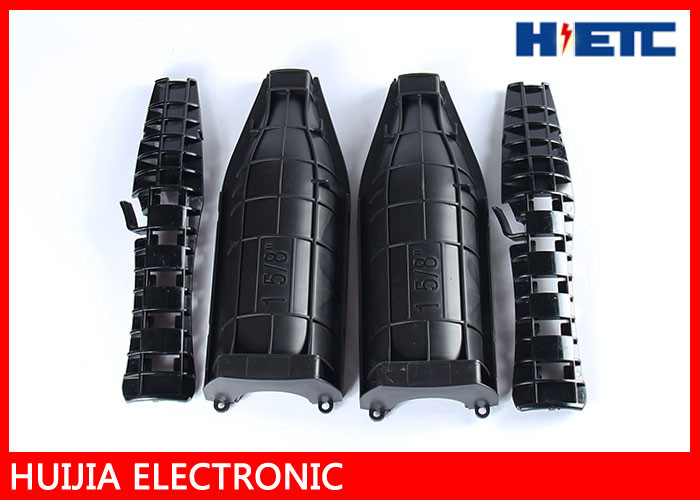

Connector Gel Seal Shelter For 1/2" Jumper Cable To 1-5/8" Feeder Cable Commmunication Tools
| Technical Parameter for Closure | Product Size | 255mm*105mm*85mm |
| Model Number | HJ12158 | |
| Material | Plastic, silica gel | |
| Waterproof Rating | IP68 | |
| Fireproof Rating | HB | |
| Lifespan | More than 10 years | |
| Temperature Range | -40~65 Celsius degree | |
| Rainstorm resistance | 100E150mm/h | |
| Ice-snow resistance | Up to 100mm | |
| Inlet | 1/2" Jumper Cable(13-17mm) | |
| Outlet | 1-5/8" Feeder Cable(49.5-52mm) |
Description:
HJ12158 gel seal closure is a new kind of weatherproofing kit.It is designed to quickly seal the antenna connector and feeder connectors in cellular sites.This closure contains an innovative gel material and provides an efficient block against moisture & salt mist.
HJ12158 gel seal closures have pass strict tests from lab and achieve good feedback from long-term practical application.The ease of installation and reusable feature makes them a cost-effective solution.
Advantages
· quick install, just take seconds.
· easy removable & reusable.
· one step install, simple, don't need training.
· assure a unifom and good sealing jobs.
· wraparound and no disconnection of the connectors.
Certificate
· The third party test report from CTTL (china telecommunication technology labs )
· Material safety ROHS report.
Engineering experience
· China Unicom
· China Mobile
· China Telecom
Installation:
1. Open closure,place the connector inside.
2. Close the closure
3. Slash the pin
4. The hole of pin should cover the eminent point of the closure
5. Press the button,and push the pin
6. Open the closure
