| Place of Origin: | China(Mainland) |
| Brand Name: | HUIJIA |
| Certification: | ISO,SGS.ROHS |
| Model Number: | HJ-D |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PP Bag,Brown Carton |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000/PCS |
| Material: | Plastic | Waterproof Level: | IP68 |
|---|---|---|---|
| Fireproof Level: | HB | Lifespan: | More Than 10 Years |
| Rainstorm Resistance: | 100E150mm/h | Inlet: | 7/8" Feeder Cable(27-29mm) |
| Oulet: | 7/8"Feeder Cable & Grounding Wire | Color: | Black |
| High Light: | BTS Slim Lock Closure,HJ-D Slim Lock Closure,silica gel fosc enclosure |
||

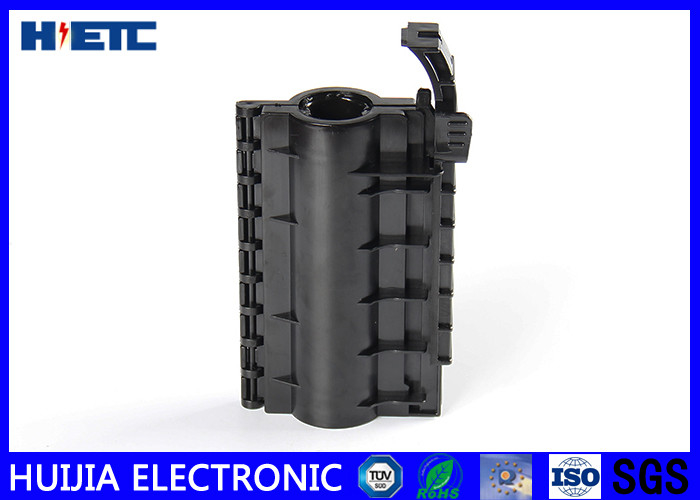

BTS Feeder Cable Protection Box 7/8 Inch Feeder Cable Grounding Device HJ-D
| Technical Parameter for Closure | Product Size | 125mm*45mm*27mm |
| Model Number | HJ-D | |
| Material | Plastic, silica gel | |
| Waterproof Rating | IP68 | |
| Fireproof Rating | HB | |
| Lifespan | More than 10 years | |
| Temperature Range | -40~65 Celsius degree | |
| Rainstorm resistance | 100E150mm/h | |
| Ice-snow resistance | Up to 100mm | |
| Inlet | 7/8" Feeder Cable(27-29mm) | |
| Outlet | 7/8"Feeder Cable & Grounding wire |
Description:
The closure is suitable for the connecting of 7/8 to 7/8 feeder cable or 7/8 feeder cable grounding . It provides quick sealing protection to the exposed parts of antenna to feeder or feeder to feeder connection. Rated to IP68.prevent rain, dust and other debris of immersion, to ensure the smooth flow of communication signals.
Advantages
· quick install, just take seconds.
· easy removable & reusable.
· one step install, simple, don't need training.
· assure a unifom and good sealing jobs.
· wraparound and no disconnection of the connectors.
Certificate
· The third party test report from CTTL (china telecommunication technology labs )
· Material safety ROHS report.
Engineering experience
· China Unicom
· China Mobile
· China Telecom
Installation:
1. Open closure,place the connector inside.
2. Close the closure
3. Slash the pin
4. The hole of pin should cover the eminent point of the closure
5. Press the button,and push the pin
6. Open the closure
