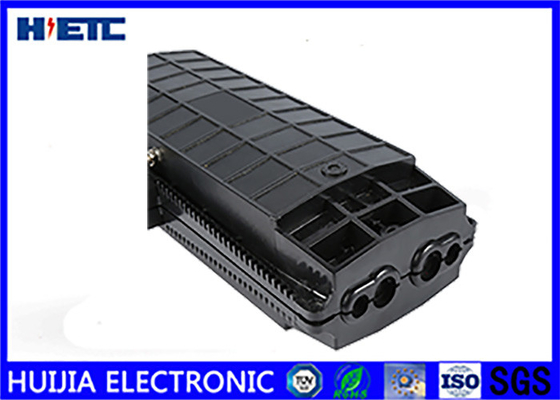

In Line Underground Fiber Splice Enclosure , FOSC Fiber Optic Splice Closure

In Line Underground Fiber Splice Enclosure , FOSC Fiber Optic Splice Closure

  • In Line Underground Fiber Splice Enclosure , FOSC Fiber Optic Splice Closure
  • In Line Underground Fiber Splice Enclosure , FOSC Fiber Optic Splice Closure
In Line Underground Fiber Splice Enclosure , FOSC Fiber Optic Splice Closure
Product Details:
Place of Origin: China(Mainland)
Brand Name: HUIJIA
Certification: ISO,SGS,ROHS
Model Number: GJS10
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PP Bag,Brown Carton
Delivery Time: 10 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 1000/PCS
Contact Now
Detailed Product Description
Name: Fiber Enclosure Box Waterproof Level: IP68
Fireproof Level: HB Lifespan: More Than 10 Years
Application: Direct-buried,aerial
High Light:

IP68 underground fiber splice enclosure

,

inline underground fiber splice enclosure

,

fosc fiber optic splice closure

Grounding Kit Fiber Optic Splice Box / IP68 Fiber Enclosure Box For Cable Duct





Description





fiber optic in-line closure provide suitable for cable whose diameter is 10-23mm, they could be used in aerial, duct, and direct buried



application. These products are made of the high quality material and with the mechanical sealing structure filled with the sealing material. The



external components and fastening parts are made of stainless steel. They could be opened and reused without changing sealing material.









Specification





Advanced internal structure design



Easy to re-enter, it never requires re-entry tool kit

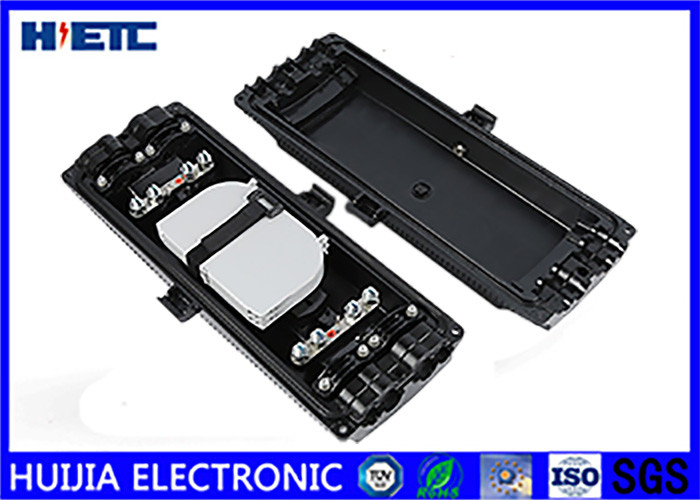

The closure is spacious enough for winding and storing fibers



Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN- LOCK and its opening angle is about 90°



The curved diameter meets with international standard



Easy and fast to increase and reduce FOSTs



Straight-through for uncutting and branching for cut





Details



Technical Parameter for Closure Waterproof Rating IP68
Fireproof Rating HB
Lifespan More than 10 years
Temperature Range -40~65 Celsius degree











Features



1. Made of high quality engineer plastic;



2. Oval shape tray ensure open angle >=90 degree;



3. Storing fiber circle design;



4. Can be re-open many tims, circle radius≥40mm



5 Standard size, light weight and reasonable structure



6 7 Splice tray inside changeable



8 Can be used in 19'', 23'' standard distribution frame



9 Suitable for ribbon and single fiber





Applications

  • Suitable for ribbon and bunchy fibers
  • Aerial
  • Cable duct
  • Direct burial

In Line Underground Fiber Splice Enclosure , FOSC Fiber Optic Splice Closure 0
